Portable Fire Extinguishing Robot with Lithium Battery Driven Wireless Remote Control and Small Size for Urban Vehicle Fires
Portable Fire Extinguishing Robot with Lithium Battery Driven Wireless Remote Control and Small Size for Urban Vehicle Fires Portable Fire Extinguishing Robot with Lithium Battery Driven Wireless Remote Control and Small Size for Urban Vehicle Fires Portable Fire Extinguishing Robot with Lithium Battery Driven Wireless Remote Control and Small Size for Urban Vehicle Fires Portable Fire Extinguishing Robot with Lithium Battery Driven Wireless Remote Control and Small Size for Urban Vehicle Fires Portable Fire Extinguishing Robot with Lithium Battery Driven Wireless Remote Control and Small Size for Urban Vehicle Fires
contacto

Informação detalhada
Destacar:

Lithium Battery Driven Fire Extinguishing Robot

,

Wireless Remote Control Portable Fire Robot

,

Small Size Tracked Fire Robot

Descrição de produto

Portable New Energy Vehicle Fire Extinguishing Robot

A compact, remotely operated firefighting robot designed specifically for urban vehicle fire suppression operations.

Product Overview

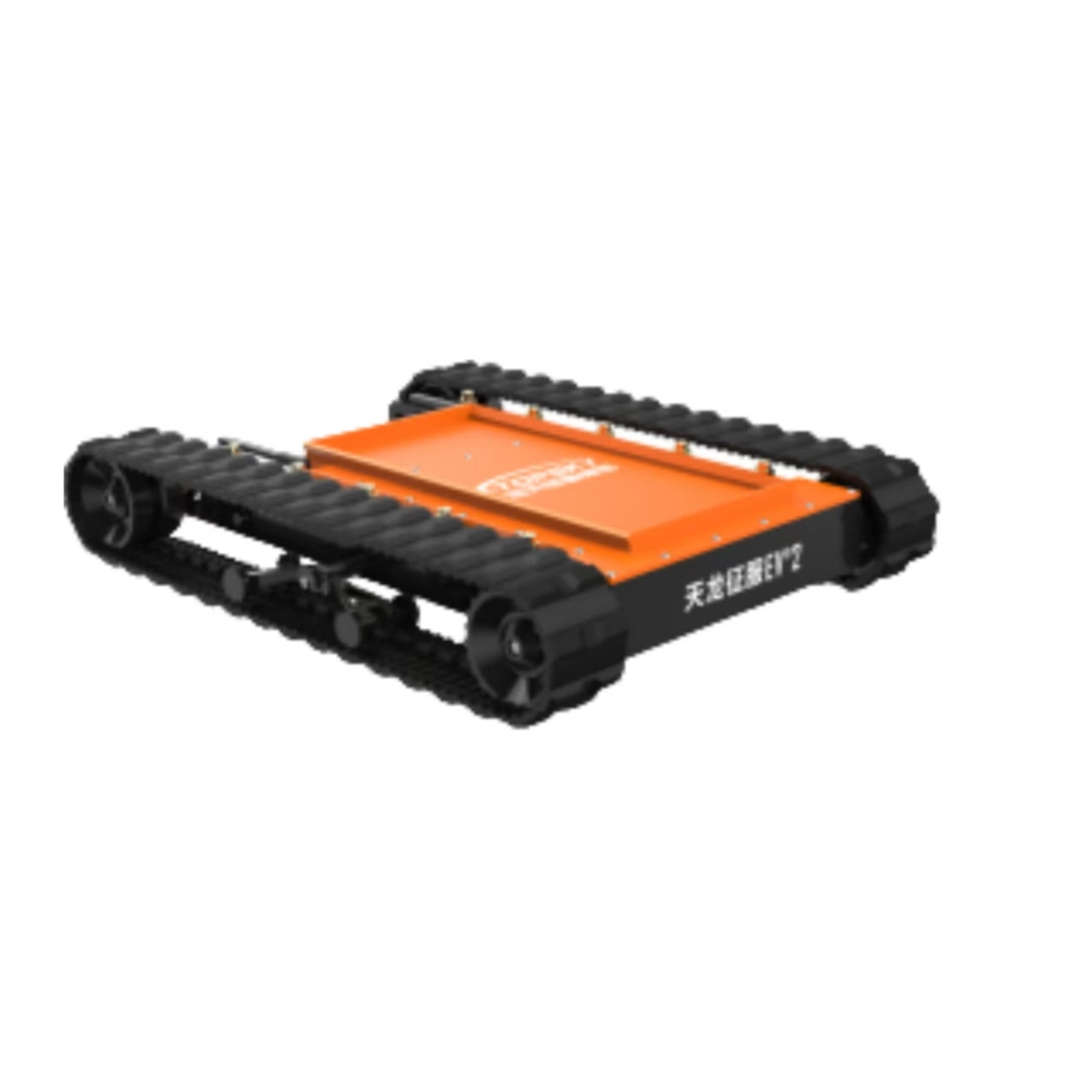

The tracked explosion-proof robot chassis utilizes lithium battery power and wireless remote control operation. Featuring versatile carrying options and in-place rotation capability for enhanced operational flexibility.

Key Features
  • Compact Design: Small footprint, lightweight construction for easy transport and deployment
  • Simple Operation: Direct power-on connection for immediate readiness and rapid deployment
  • Smooth Performance: Differential independent suspension ensures stable operation and flexible turning in complex environments
Technical Specifications
Overall Performance Parameters
ParameterSpecification
Drive ModeLithium battery driven, capacity ≥ 360Wh
Overall Dimensions≤ 650mm × 500mm × 118mm (excluding universal joint and self-detachable parts)
Turning Diameter≤ 900mm, in-place rotation
Weight≤ 26.4kg
Traction Force≥ 330N (on flat paved surface)
Load Capacity≥ 50kg (on flat paved surface)
Maximum Straight-line Speed≥ 1.0m/s, remote control with stepless speed regulation
Straight-line Deviation≤ 3%
Braking Distance≤ 0.3m
Climbing Ability≥ 70% (or 35°)
Obstacle Clearance Height50mm
Side Tilt Stability Angle≥ 70% (35°)
Water Wading Depth≥ 210mm
Continuous Travel Time≥ 3 hours
Reliability Working TimePassed 16-hour continuous stability and reliability test
Remote Control Distance≥ 300m
Track Width≥ 80mm
Total Motor Power≥ 1.6KW
Charging Time≤ 4 hours
Control MethodWireless remote control
Fire Extinguishing System
ParameterSpecification
Fire Extinguishing Agent TypeWater
Nozzle MaterialCopper
Working Pressure0.2 - 1.0 Mpa
Spray PatternConical Water Mist
Flow Rate≥ 2 L/s
RangeHorizontal coverage diameter ≥ 1m, vertical range ≥ 1m
Number of Atomizing Nozzles≥ 10
Remote Terminal Configuration
ParameterSpecification
Dimensions≤ 230mm × 170mm × 75mm
Weight1.3kg
Transmission Frequency2.4GHz ISM Band (2400MHz - 2483.5MHz)
Transmission Power≥ 15dBm (32mW)
Operating Voltage5V
Battery LifeNo less than 3 hours
Water ResistanceIP65
ChargerStandard charger included, 220V 10A, with standard two-pin input interface
