Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement
Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement
contacto

Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement

Lugar de origem: China Marca: topsky

Informação detalhada
Tipo de fonte de luz: Luz laser azul; Luz de laser roxa outro nome: Aventais de Isolamento Médico Tipo Coverall
Detecção máxima: ≥ 2,5 km (veículo) Capacetes: 709,4m/s
Rotação: 0-120rpm Capacidade do tanque de água: 16L
Tempo de resposta de detecção: ≤ 2 s com capacidade de detecção em tempo real Tamanho da broca: 4/5/6/8mm
Peso do motor principal: 28kg Casco: ≥720m/s
Visor LCD: 2Display Full HD de 0,0 polegadas Disponibilidade: Disponível em todo o mundo
Poder: 24V Distância de travagem: ≤0,11m
Maneira de controle: Alimentado por bateria
Destacar:

Intrinsically Safe Infrared Thermal Imager

,

Real-time Detection Thermal Imaging Device

,

Multi-point Temperature Measurement Mine Safety Equipment

Descrição de produto

Mine-used Intrinsically Safe Infrared Thermal Imager
Product Overview
The YRH800 mine-used intrinsically safe infrared thermal imager is designed for thermal imaging and temperature measurement in coal mine environments. It employs a non-cooled focal plane infrared detector to present infrared thermal spectrum data in high-definition, high-sensitivity pseudo-color image format with multi-point temperature measurement capability.
Images, videos, and voice recordings can be stored on a Micro SD card for in-depth computer analysis and statistical processing. Suitable for all personnel including technicians, operators, and managers in explosive hazard environments.
Key Applications
  • Detection of high-temperature areas and real-time temperature difference imaging
  • Identification of coal seam spontaneous combustion areas in ventilation work areas
  • Search and rescue operations for locating trapped personnel in dark conditions
Technical Specifications
Display & Resolution Digital display with resolution ≥0.1°C, capable of indicating positive/negative values
Operating Modes Photo mode and temperature measurement mode with photo/video recording capability
Data Management Storage, recall, deletion, and playback functions
Temperature Measurement Maximum, minimum, and average temperature measurement for points, lines, and surfaces
Display Options Multiple pseudo-color and color scale display options
Alarm Functions High-temperature alarm, low-temperature alarm, preset temperature alarm with adjustable alarm points and emissivity settings
Focusing System Manual and automatic focusing functions
Interface Features Background light switch, brightness adjustment, °C/°F conversion, trigger lock
Operation Interface Physical keyboard with Chinese menu operation interface
Performance Characteristics
  • Repeatability: ≤0.5°C
  • Alarm accuracy: Alarm display value within ±1.0°C of set value
  • Audible alarm function when temperature exceeds preset points
Power & Safety Specifications
Battery Module Model PL123450, rechargeable, two 1600mAh manganese oxide lithium batteries
Electrical Parameters Maximum open-circuit voltage: 8.4V DC; Maximum short-circuit current: 1.6A
Explosion-proof Certification Mine intrinsically safe type, explosion-proof mark: Ex ibⅠMb
Construction ABS + silicone shell
Weight 1.0kg
Dimensions 283×103×160mm
Protection Rating IP54

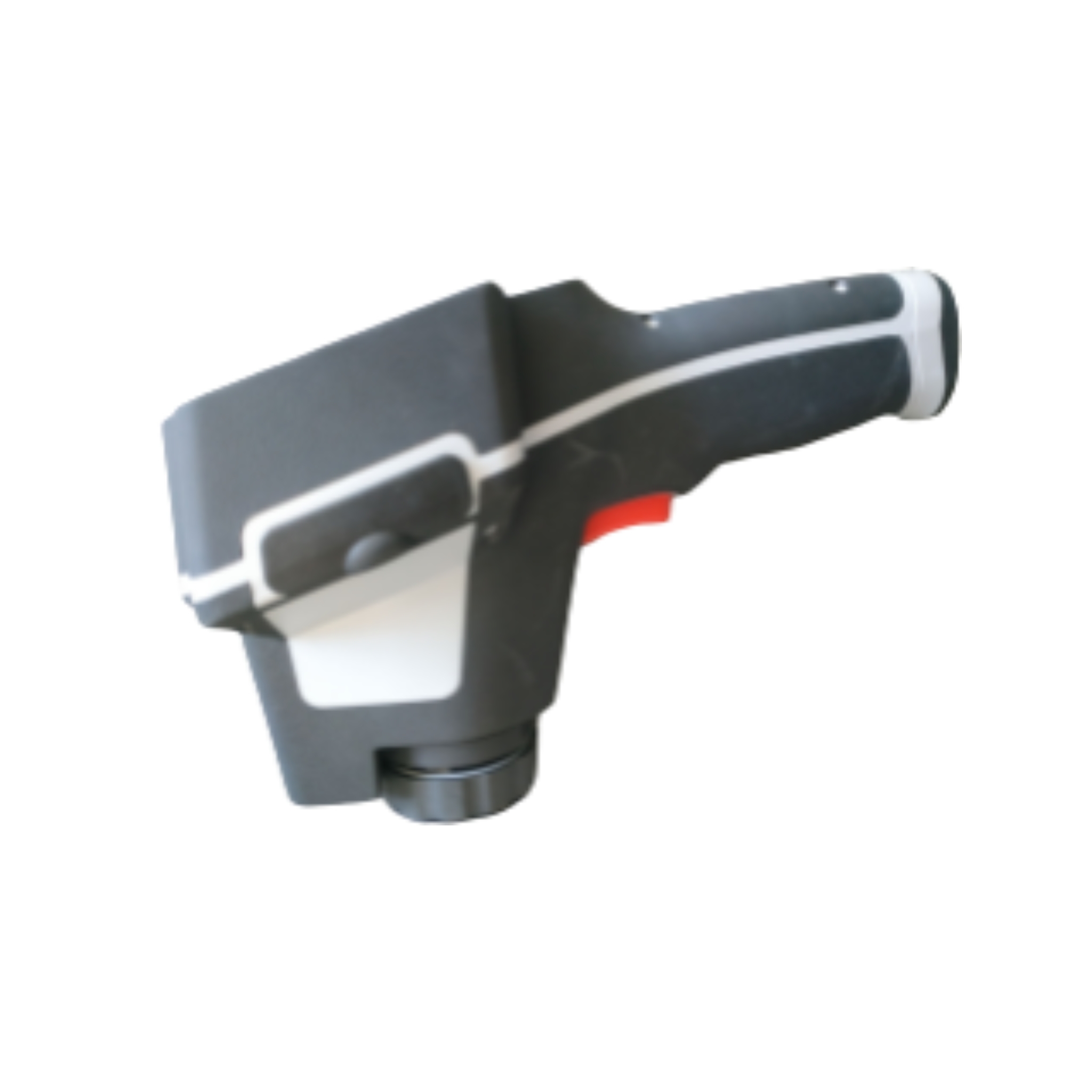

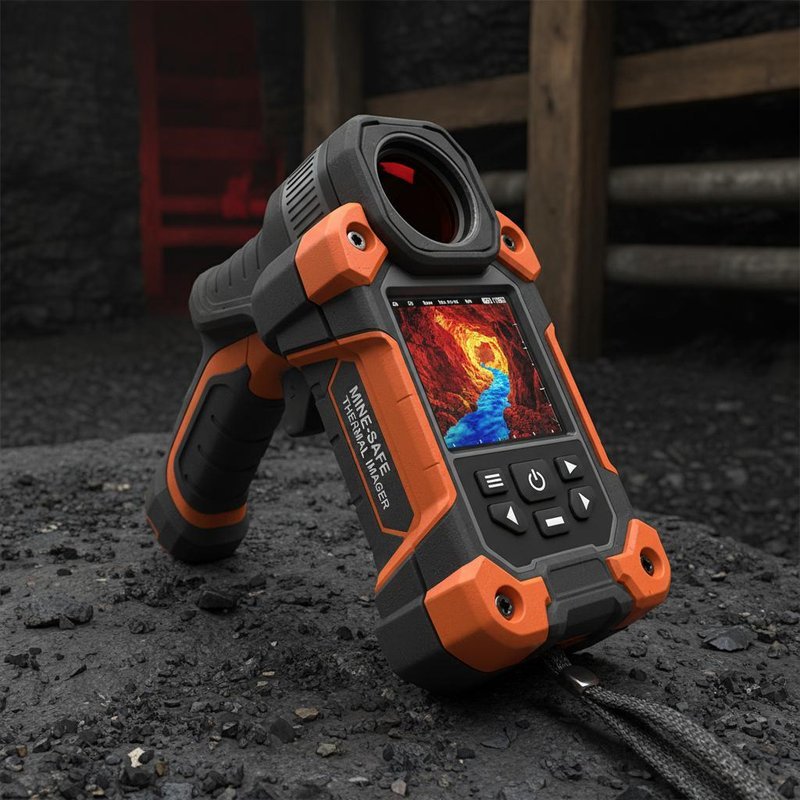

Product Images
Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement 0 Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement 1 Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement 2 Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement 3
