Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image
Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image
contacto

Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image

Lugar de origem: China Marca: topsky

Informação detalhada
Largura da Quebra: 60-140cm Recurso: não contato
Força de tração: ≥5240N Communicaiton para impressora: Bluetooth
Propósito: Prevenir e responder a ataques terroristas Duração Padrão: 320min
Fonte de energia: Baterias recarregáveis ​​ou fonte de alimentação externa resolução: >20 (para o TNT)
Peso total: 21 kg Velocidade: 2s
Pesar: 15,5 kg Material: Aço de alta qualidade, Kevlar, materiais compósitos
distância do controle de fio: 1000 milhões Fabricante: Vários empreiteiros especializados em defesa
Tempo de resposta: Menos de 1s
Destacar:

Intrinsically Safe Infrared Thermal Imager

,

Non-contact Temperature Measurement Thermal Imaging Device

,

High-definition Pseudo-color Image Mine-used Thermal Imager

Descrição de produto

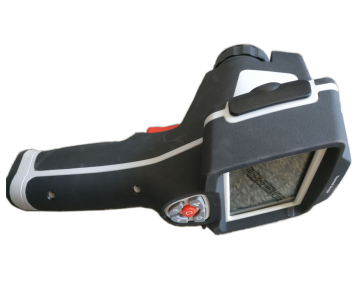

Mine-Used Intrinsically Safe Infrared Thermal Imager
The YRH800 mine-used intrinsically safe infrared thermal imager is designed for thermal imaging and temperature measurement in coal mine environments. This advanced thermal imaging device utilizes a non-cooled focal plane infrared detector to deliver high-definition, high-sensitivity pseudo-color thermal imaging with multi-point temperature measurement capabilities.
Product Overview
This thermal imager captures and stores infrared thermal spectrum data in images, videos, and audio recordings on a Micro SD card for comprehensive computer analysis and statistical evaluation. Suitable for all personnel including technicians, operators, and management teams, it enables reliable thermal detection in explosive hazard environments.
Applications include detecting high-temperature zones, real-time temperature differential imaging, identifying coal seam spontaneous combustion areas in ventilation workspaces, and assisting rescue teams in locating trapped personnel under low-visibility conditions.
Key Features
  • Digital display with 0.1°C resolution and positive/negative value indication
  • Dual operation modes: photo capture and temperature measurement with real-time video recording
  • Comprehensive data management: storage, retrieval, deletion, and playback functions
  • Advanced temperature measurement: maximum, minimum, and average temperatures for points, lines, and surfaces
  • Multiple pseudo-color and color scale display options
  • Programmable alarm system: high-temperature, low-temperature, and preset temperature alarms
  • Manual and automatic focusing capabilities
  • Background light control with brightness adjustment
  • °C/°F conversion with trigger lock functionality
  • User-friendly operation keyboard with Chinese menu interface
Technical Specifications
Temperature Measurement Repeatability ≤ 0.5°C
Alarm System Accuracy ±1.0°C deviation from set value with audible alarm activation
Battery Module Model PL123450, rechargeable, dual 1600mAh manganese oxide lithium batteries
Maximum Open-Circuit Voltage 8.4V DC
Maximum Short-Circuit Current 1.6A
Explosion-Proof Certification Mine intrinsically safe type, Ex ibⅠMb
Housing Material ABS + silicone construction
Weight 1.0kg
Dimensions 283 × 103 × 160mm
