Lat-head axial interface; functions including expansion, tearing, extrusion Demolition Tool Set (Version 2.0)
Lat-head axial interface; functions including expansion, tearing, extrusion Demolition Tool Set (Version 2.0) Lat-head axial interface; functions including expansion, tearing, extrusion Demolition Tool Set (Version 2.0) Lat-head axial interface; functions including expansion, tearing, extrusion Demolition Tool Set (Version 2.0) Lat-head axial interface; functions including expansion, tearing, extrusion Demolition Tool Set (Version 2.0)
contacto

Lat-head axial interface; functions including expansion, tearing, extrusion Demolition Tool Set (Version 2.0)

Quantidade de ordem mínima : 1 conjunto Preço : USD8200
Detalhes da embalagem : caixa de alumínio Tempo de entrega : 60 dias
Termos de pagamento : T/T Habilidade da fonte : 10 grupos/mês
Lugar de origem: China Marca: Topsky
Número do modelo: Equipamento de saída de potência de ultra-alta pressão

Informação detalhada
Poder:: 2.2L Capacidade do tanque de gasolina: 2.0L
Taxa de fluxo na pressão nominal: 0,84 L/min Taxa de fluxo em média pressão:: 2,15 L/min
Destacar:

lat-head axial demolition tool

,

firefighting expansion extrusion tool

,

demolition tool set with warranty

Descrição de produto

Demolition Tool Set (Version 2.0)
Product Overview
  • 72 MPa Ultra-High Pressure Power Output
  • Single-Pipe & Single-Connection Lightweight Design
  • High-Quality Material for Durability and Reliability
Application Scope

Designed for rapid demolition and cutting of obstacles at rescue sites. Suitable for multiple scenarios including earthquake rescue, traffic accident rescue, personnel extrication, and vehicle dismantling.

Product Features
Overall Advantages
  • Powerful performance
  • Pressure-resistant plug-in
  • Single-interface design
  • LED light
  • 360° rotating handle
  • Laser positioning

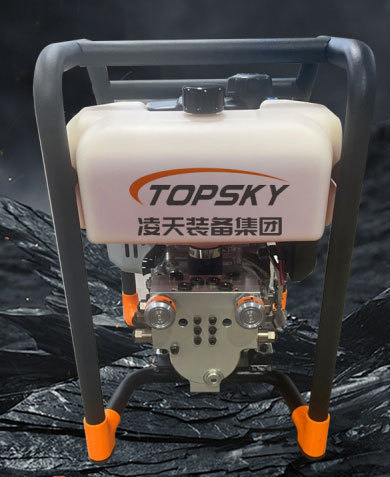

Dual-Output Hydraulic Power Pack

Flat-head axial interface; capable of connecting two sets of tools simultaneously; pressure-resistant plug-in; powerful power and high efficiency.

Hydraulic Expander

Flat-head axial interface; functions including expansion, tearing, extrusion, and traction; maximum expansion distance of 735 mm; customizable tool head; 72 MPa ultra-high pressure.

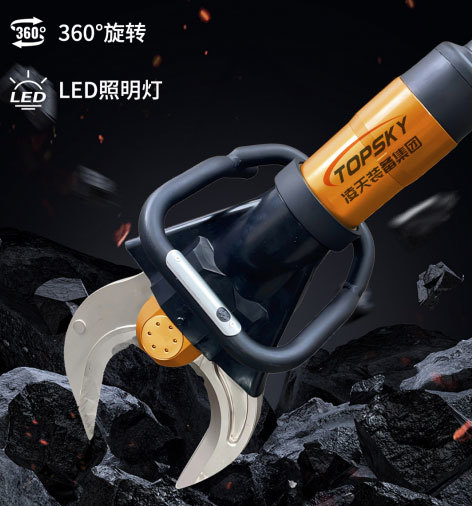

Hydraulic Cutter

Capable of cutting steel bars, steel plates, steel pipes, and other metal products; alloy tool head; 360° rotation; LED lighting.

Hydraulic Cutting-Expander

2-in-1 multifunctional pliers integrating cutting and expansion; traction operation available; LED lighting.

Hydraulic Two-Stage Jack

Laser alignment device at the top of the jack rod for precise positioning; flat-head axial single interface; laser positioning; non-slip top.

Hydraulic Manual Pump (Model A)

No fuel or electricity required; power generated by manual operation; automatic high-low pressure adjustment; flat-head axial single interface; pressure-resistant plug-in.

Main Technical Specifications
Component Specifications
Hydraulic Power Pack (Model: B JQ-72/23)
  • Rated Working Pressure: 72 MPa
  • Power: 2.2 kW
  • Gasoline Tank Capacity: 2.0 L
  • Hydraulic Oil Tank Capacity: 4.0 L
  • Engine Speed: 3600±200 r/min
  • Flow Rate at Rated Pressure: 0.84 L/min
  • Flow Rate at Medium Pressure: 2.15 L/min
Hydraulic Cutter (Model: GYJQ72-36(16)170)
  • Rated Pressure: 72 MPa
  • Maximum Shear Force: 890 kN
  • Opening Distance: 170 mm
  • Weight: 14 kg
  • Shearing Capacity: 36 mm (round steel) / 16 mm (steel plate)
Hydraulic Expander (Model: GYKZ72-45/735)
  • Rated Pressure: 72 MPa
  • Maximum Expansion Distance: 735 mm
  • Minimum Expansion Force: 46.1 kN
  • Maximum Expansion Force: 510 kN
  • Maximum Extrusion Force: 96 kN
  • Maximum Traction Force: 46 kN
  • Weight: 15 kg
Hydraulic Cutting-Expander (Model: GYJK72-36(16)/410)
  • Minimum Expansion Force: 47.3 kN
  • Maximum Expansion Force: 215 kN
  • Maximum Expansion Distance: 410 mm
  • Maximum Traction Force: 73 kN
  • Maximum Traction Distance: 410 mm
  • Maximum Shear Force: 800 kN
  • Maximum Extrusion Force: 80 kN
  • Shearing Capacity: 36 mm (round steel) / 16 mm (steel plate)
  • Weight: 14.8 kg
Hydraulic Two-Stage Jack (Model: GYCD72-235/960-110/1310)
  • First-Stage Supporting Force: 235 kN
  • First-Stage Jacking Length: 960 mm
  • First-Stage Supporting Height: 400 mm
  • Second-Stage Jacking Force: 110 kN
  • Second-Stage Jacking Length: 1310 mm
  • Second-Stage Supporting Height: 350 mm
  • Weight: 14.7 kg
Hydraulic Manual Pump (Model: ZYBS-72)
  • Rated Pressure: 72 MPa
  • Hydraulic Oil Tank Capacity: 2.4 L
  • Flow Rate at Rated Pressure: 2.5 mL/stroke
  • Low-Pressure Flow Rate: 17.5 mL/stroke
  • Weight: 8 kg
Product Dimensions
  • Hydraulic Cutting-Expander: 790×230×240 mm
  • Hydraulic Expander: 840×335×190 mm
  • Hydraulic Cutter: 740×286×240 mm
  • Hydraulic Manual Pump: 610×158×158 mm
  • Hydraulic Two-Stage Jack: 560×105×285 mm
  • Hydraulic Power Pack: 395×315×483 mm
Product Weight
  • Hydraulic Cutting-Expander: 14.8 kg
  • Hydraulic Expander: 15 kg
  • Hydraulic Cutter: 14 kg
  • Hydraulic Manual Pump: 8 kg
  • Hydraulic Two-Stage Jack: 14.7 kg
  • Hydraulic Power Pack: 23 kg
Product Configuration
  • 1 Set of Hydraulic Power Pack
  • 1 Set of Hydraulic Cutter
  • 1 Set of Hydraulic Expander
  • 1 Set of Hydraulic Cutting-Expander
  • 1 Set of Hydraulic Two-Stage Jack
  • 1 Set of Hydraulic Manual Pump
  • 2 Hydraulic Hoses (10 meters per hose)
