Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range
Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range
contacto

Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range

Lugar de origem: China Marca: topsky

Informação detalhada
Comprimento de onda: 447nm; 415nm Garantia: 5 anos
O Tamanho do Pixel: : aprox. 160 μm. Barulho: menos de 30dB
Escala do foco: 0.3m~ Ajuste vertical: 0-30cm
Tamanho remoto: 278*184*43mm Tamanho do Aparelho Auditivo: 210*100*100 mm
Protetor de pescoço: 850m/s Modelo: RXR-M80D
Tipo de alarme: som leve e vibração Tamanho da Praia: 73*16*50cm
Ampliar: 16 vezes Velocidade linear máxima: ≥1,52m/s, velocidade de controle remoto da ritmo
Tipo de produto: Equipamento
Destacar:

4G Transmission Dust Measurement Instrument

,

0.001mg/m3 Resolution Dust Concentration Meter

,

0.001mg/m3 to 50mg/m3 Range Dust Monitor

Descrição de produto

Dust Measurement Instrument
Product Overview

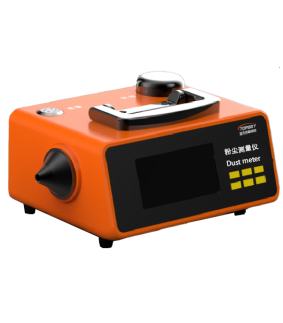

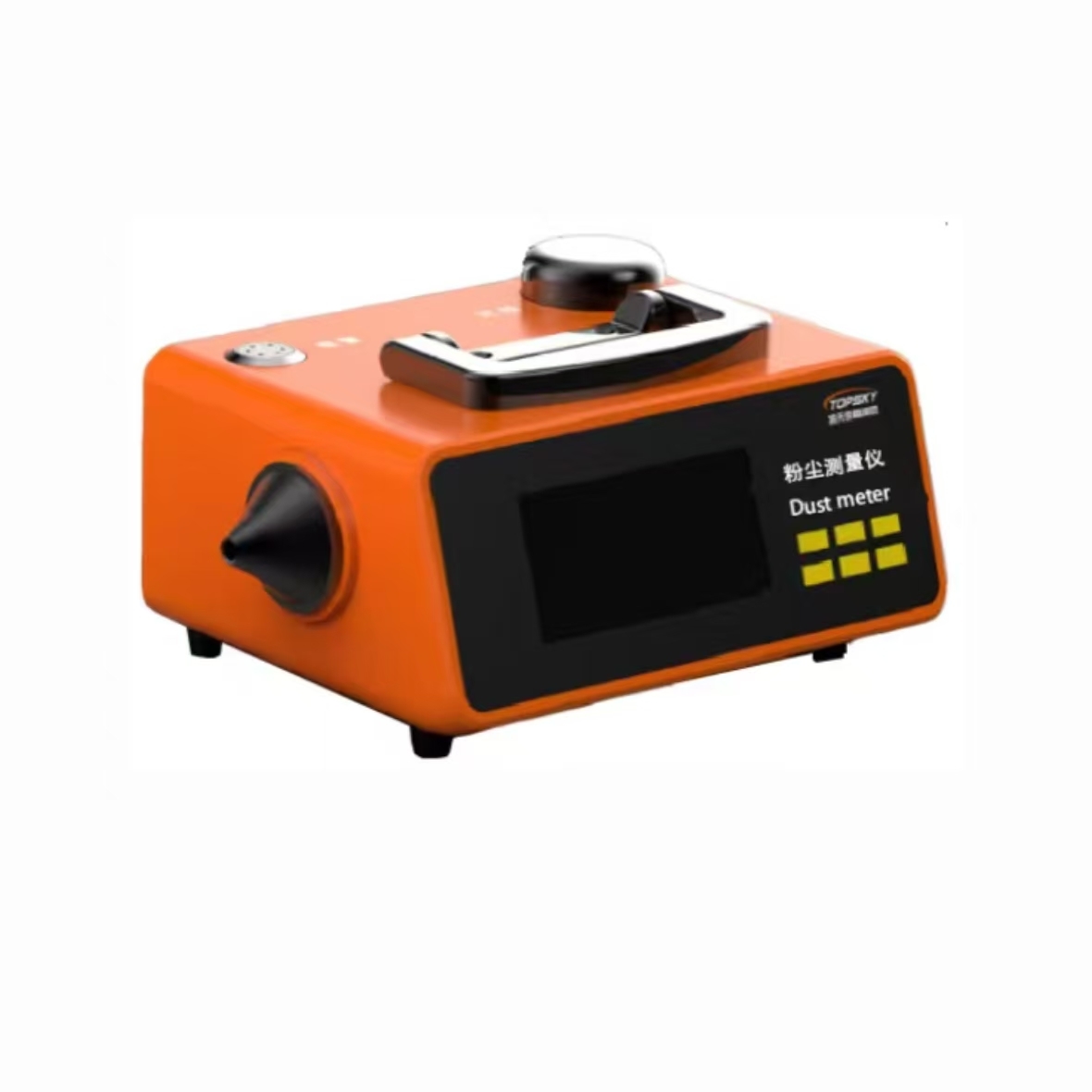

The CCZ500 dust measurement instrument is a portable, easy-to-use device that provides direct readings of dust concentration. Utilizing advanced light scattering technology with an infrared laser and imported photomultiplier tubes, it converts scattered light intensity into electrical signals to calculate mass concentration. This instrument features:
  • Fast, accurate measurements with high sensitivity
  • Stable performance with strong load capacity
  • Low susceptibility to optical path dust accumulation
  • Configurable alarm thresholds with audible/visual alerts
  • 4G data transmission for real-time monitoring
  • Compliant with MT163-1997, JJG846-2015, GB 20964-2007, and GB3836.4-2010 standards
Key Features
  • ★ Lightweight: Compact and portable design for easy measurement
  • ★ Efficient: Direct reading with one-button operation and 1-minute results
  • ★ High Precision: Resolution of 0.001mg/m³
  • ★ Automatic Alarm: Customizable threshold alerts
  • ★ Data Processing: Scheduled sampling with TWA calculation
  • ★ Networking: 4G transmission for real-time data visualization
  • ★ Maintenance-free: No cleaning required for sensor module
  • ★ Integrated: Durable, reliable design with attractive appearance
Technical Specifications
Dust Measurement Instrument
Measurement Range ★ 0.001mg/m³ ~ 50mg/m³ (accuracy 0.001mg/m³)
★ 0.01mg/m³ ~ 150mg/m³ (accuracy 0.01mg/m³)
Relative Error ★ ≤ 10%
Measurement Time 1 minute (standard measurement time)
Alarm Function ★ Built-in with customizable concentration settings
Data Storage ★ Up to 9999 data sets
Calculations ★ Automatic time-weighted average (TWA)
Network Function ★ 4G transmission of dust concentration, temperature, humidity, and GPS data
Display 4.3-inch LCD screen
Working Time ≥ 6 hours
