Casa Produtosequipamento de combate a incêndioHeavy-duty Hydraulic Demolition Tool Set Long Service Life Automatic Switching Function Between High and Low Voltage
Heavy-duty Hydraulic Demolition Tool Set Long Service Life Automatic Switching Function Between High and Low Voltage
Heavy-duty Hydraulic Demolition Tool Set Long Service Life Automatic Switching Function Between High and Low Voltage Heavy-duty Hydraulic Demolition Tool Set Long Service Life Automatic Switching Function Between High and Low Voltage Heavy-duty Hydraulic Demolition Tool Set Long Service Life Automatic Switching Function Between High and Low Voltage Heavy-duty Hydraulic Demolition Tool Set Long Service Life Automatic Switching Function Between High and Low Voltage Heavy-duty Hydraulic Demolition Tool Set Long Service Life Automatic Switching Function Between High and Low Voltage
contacto

Heavy-duty Hydraulic Demolition Tool Set Long Service Life Automatic Switching Function Between High and Low Voltage

Quantidade de ordem mínima : 1 conjunto Preço : USD8000
Detalhes da embalagem : Caso de alumínio Tempo de entrega : 60 dias
Termos de pagamento : T/T Habilidade da fonte : 10 grupos/mês
Lugar de origem: China Marca: Topsky
Número do modelo: GYPC72

Informação detalhada
Capacidade do tanque de óleo da bomba do motor hidráulico: 3.5L Peso da bomba do motor hidráulico: 24,84kg
Peso do Expansor Hidráulico: 16.9kg Distância de abertura de corte hidráulico: 260mm
Força de expansão máxima do expansor hidráulico: 110,54 kN
Destacar:

heavy-duty hydraulic demolition tool

,

automatic switching demolition tool

,

long service life demolition tool

Descrição de produto

Heavy-duty Hydraulic Demolition Tool Set Long Service Life Automatic Switching Function Between High and Low Voltage
Product Overview
Hydraulic Motor Pump
  • Dual-output design serves as power source for hydraulic demolition tools (cutting, expanding, lifting)
  • Powered by high-performance Honda engine with high-pressure piston pump design
  • Dual interface allows simultaneous connection of two tools
  • Automatic high-low pressure conversion function
  • Compact, lightweight design reduces operator fatigue
  • Large output flow for faster response and shorter rescue times
  • Operates in temperatures from -30°C to 55°C using high-grade aviation hydraulic oil
  • "Speed multiplier valve" technology doubles rescue efficiency
  • Concentric shaft single pipe design for quick connection and safe operation
  • Automatic idle function reduces noise (68dB) and saves fuel
Hydraulic Cutter
  • High-strength alloy body with German imported sealing components
  • Lightweight aerospace aluminum alloy construction with ceramic surface treatment
  • Ergonomic handle design for comfortable operation
  • Bidirectional self-locking and automatic reset reversing valve
  • Large opening distance handles most rescue scenarios
  • No tail pipe design for easy transport and storage
  • Single pipe interface for quick connection and safe operation
  • Integrated handle/switch design for operator convenience
  • Multi-functional toothed blade increases cutting capacity
Hydraulic Expander
  • Powerful expansion, clamping and pulling functions
  • High-strength lightweight alloy steel construction
  • Bidirectional hydraulic lock with self-locking function
  • Protected moving parts ensure operator safety
  • Flat expansion head wedges into narrow gaps
  • "Acceleration valve" increases speed by 65% over traditional models
Hydraulic Cutter-Expander
  • Combines cutting, expanding and pulling functions
  • Regrindable high-strength alloy tool steel cutting edges
  • Protective covers on moving parts for operator safety
  • Self-locking hand control valve operation
  • Detachable cutting expansion head for quick replacement
Hydraulic Double-stage Jack
  • Opening, lifting and stabilizing functions
  • Anti-slip teeth at both ends
  • Two-way self-locking reversing valve
  • Rotatable crosshead for positioning in various situations
  • Double-stage design extends working distance
Hydraulic Manual Pump
  • 72MPa rated working pressure
  • Large low-pressure output flow
  • Special handle for easy carrying
  • Compact size with quick interface
  • Suitable for flammable/explosive environments
Hydraulic Tubing
  • Single pipe design with Kevlar fiber construction
  • Pressure-resistant quick connect/disconnect
  • 10+ year service life
  • 360° rotation without twisting or leakage
Application Scope
  • Fire rescue
  • Emergency rescue
Main Technical Indicators
Component Specification
Hydraulic Motor Pump
  • Power: 2kw
  • Hydraulic oil tank capacity: 3.5L
  • Weight: 24.84kg
  • Rated working pressure: 72MPa
  • High-pressure output flow: 0.7L/min (1.4L/min in doubling mode)
  • Low-pressure output flow: 2.8 L/min (5.2L/min in doubling mode)
Hydraulic Cutter
  • Weight: 13.1 kg
  • Opening distance: 260mm
  • Cutting diameter (Q235A material): 35mm
Hydraulic Expander
  • Weight: 16.9kg
  • Expansion distance: 740mm
  • Minimum expansion force: 54.53kN
  • Maximum expansion force: 110.54kN
Hydraulic Cutter-Expander
  • Weight: 13.6kg
  • Minimum expansion force: 30kN
  • Maximum expansion force: 44.32kN
  • Cutting diameter (Q235A material): 35mm
  • Expansion distance: 370mm
  • Cutting opening distance: 260mm
Hydraulic Double-stage Jack
  • Weight: 20kg
  • Length (retracted): 480mm
  • First-stage jack force: 220kN, stroke: 290mm
  • Second-stage jack force: 80kN, stroke: 280mm
Hydraulic Manual Pump
  • Weight: 6.2kg
  • Operating force: 350N
  • Hydraulic oil tank capacity: 1.5L
  • Rated working pressure: 72MPa
Hydraulic Hose
  • 2 sets included, 10m each
  • Pressure-resistant quick connect/disconnect

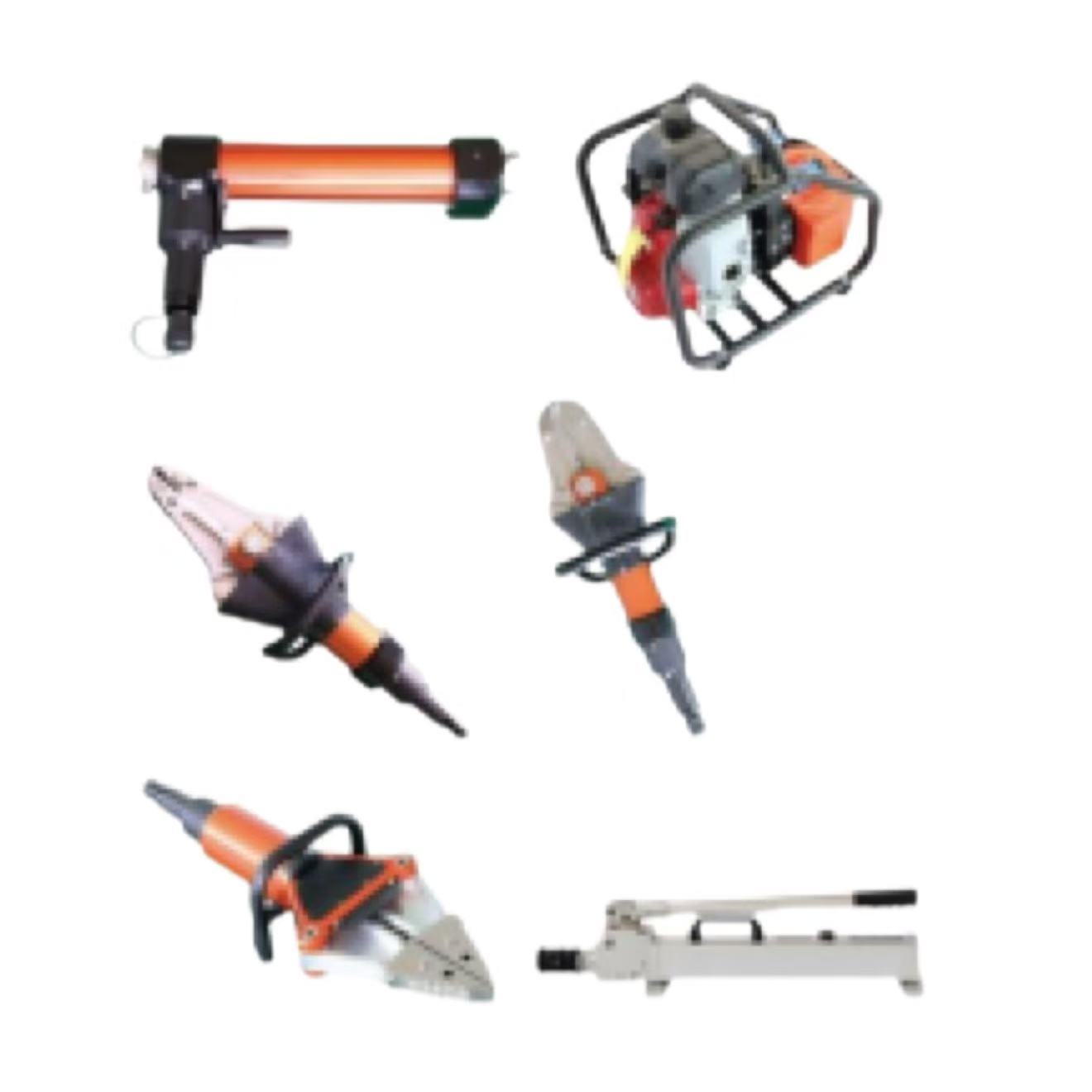

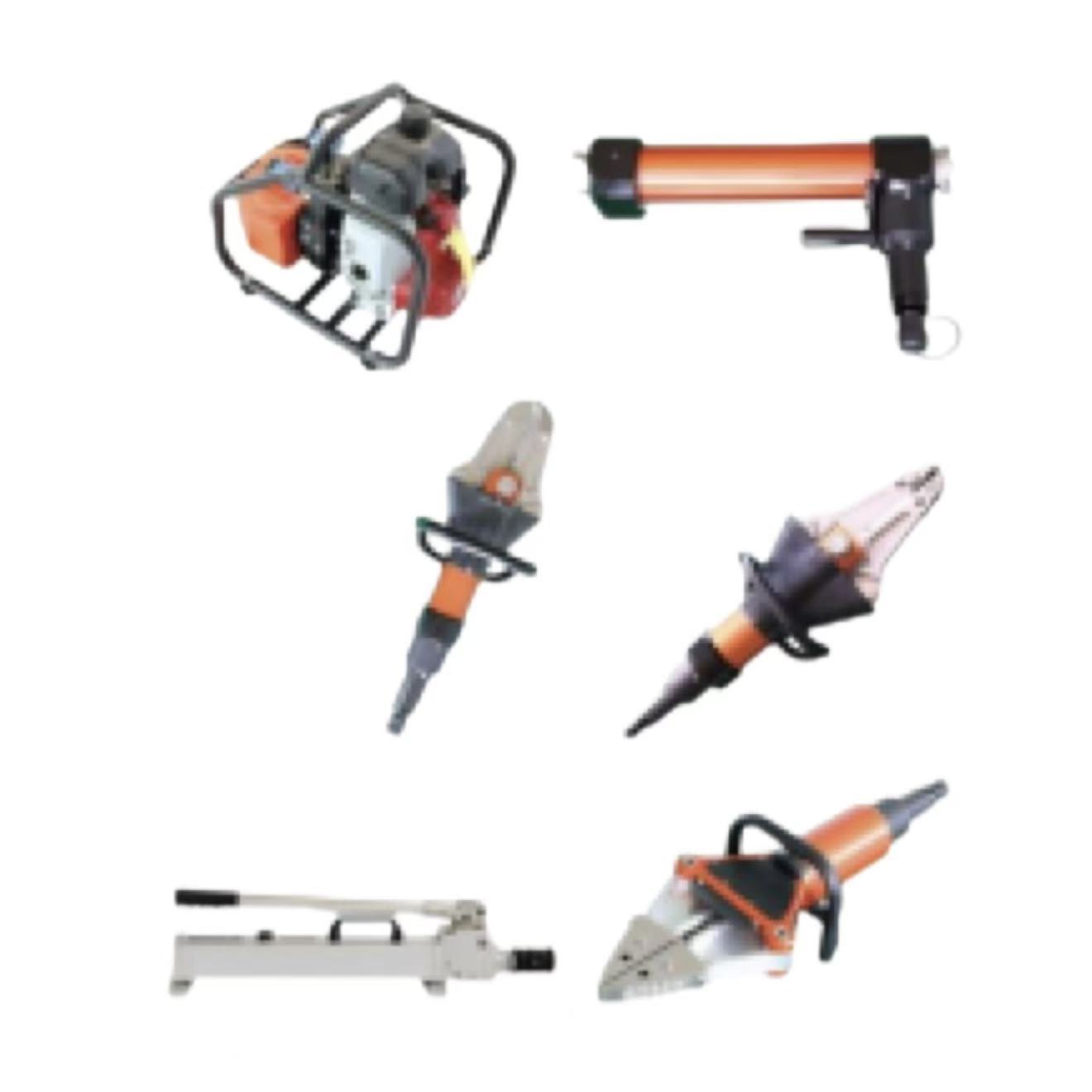

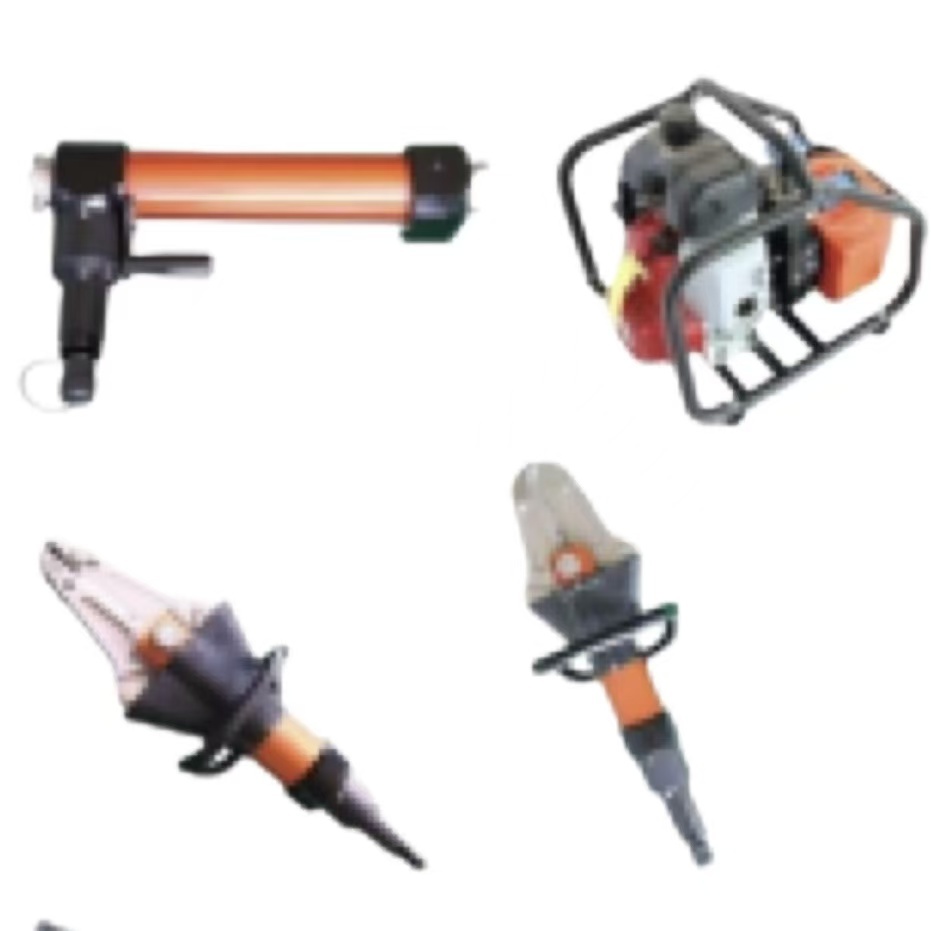

Product Configuration
  • 1 hydraulic mobile pump
  • 1 hydraulic cutter
  • 1 hydraulic expander
  • 1 hydraulic cutter-expander
  • 1 hydraulic double-stage jack
  • 1 hydraulic manual pump
  • 2 hydraulic hoses (10 meters each)
Heavy-duty Hydraulic Demolition Tool Set Long Service Life Automatic Switching Function Between High and Low Voltage 0
Frequently Asked Questions
Q: Do you offer quantity discounts?
A: Yes, please contact us for special pricing on large quantity orders.
Q: What is the typical delivery time?
A: Standard products (up to 50 pieces) typically ship in 10-15 days.
Q: Do you have international distributors?
A: Yes, we have distributors in Korea, Singapore, Malaysia, UK, Iran, India and other countries.
Q: Can we use our own branding?
A: Yes, we offer OEM services with proper licensing agreements.
