Water source acquisition and pressurization Forest fire pump is used to extinguish high-rise building fires
Water source acquisition and pressurization Forest fire pump is used to extinguish high-rise building fires Water source acquisition and pressurization Forest fire pump is used to extinguish high-rise building fires
contacto

Water source acquisition and pressurization Forest fire pump is used to extinguish high-rise building fires

Quantidade de ordem mínima : 1set Preço : USD5900
Detalhes da embalagem : Caso de alumínio Tempo de entrega : 60 dias
Termos de pagamento : T/T. Habilidade da fonte : 10 grupos/mês
Lugar de origem: CHINA Marca: Topsky
Número do modelo: TSP-G-5.0-180

Informação detalhada
Tamanho: 900 × 650 × 670 Energia do motor: 5 CV/3600 rpm
Peso: 180 kg Tipo de bomba de água: Bomba de diafragma de quatro cilindros
Método de partida: Início elétrico
Destacar:

forest fire water pump

,

high-rise building fire pump

,

firefighting water pressurization pump

Descrição de produto

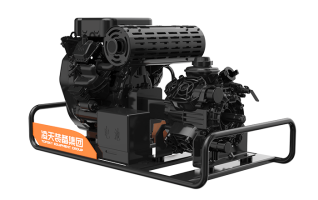

Water Source Acquisition and Pressurization Forest Fire Pump
The forest fire pump is a large flow water pump developed by our company to adapt to the special working environment of forest fire fighting. It has the advantages of energy saving and environmental protection, stable output, strong power, and ultra-long working time.
I. Product Overview
The water pump has a larger flow rate, higher lift, and longer transmission distance. The pump set adopts an engine and a diaphragm pump. The entire pump set is lightweight, compact, and has a small footprint and good stability. It is easy to operate. The operator only needs simple training to operate it skillfully. It can provide effective fire fighting support when a fire occurs, and it is one of the important equipment to handle fire emergencies. It can well protect life and property safety.
II. Application Scope
  • Grassland fire extinguishing
  • Forest firefighting
  • Mountain fire extinguishing
  • Urban fire extinguishing
III. Features
1. Water source acquisition and pressurization:
The portable fire extinguishing water pump can quickly draw water from natural water sources, solving the problem of insufficient water sources at many fire scenes. By pressurizing the drawn water source, it can use high-pressure water flow to extinguish the fire. It can spray water to high places and long distances, which is used to extinguish high-rise building fires or fire points that are difficult to approach from a distance.
2. Light and portable:
Lightweight design makes it easy to carry and operate, and it can quickly deploy equipment in complex terrain or areas with inconvenient transportation. For example, in forest terrain with complex and inconvenient access, it is difficult for large fire extinguishing equipment to penetrate deeply. It can move freely in narrow and steep terrain and directly reach the source of the fire.
3. Efficient and reliable:
It has efficient water drawing and spraying capabilities, and it is simple to operate and reliable and durable, which can quickly respond to fire situations and control the spread of the fire at the initial stage.
IV. Main Technical Specifications
  1. Engine type: V-twin, four-stroke, air-cooled, overhead camshaft
  2. Engine power: ≥5HP/3600rpm
  3. Starting method: Electric start
  4. Water pump type: Four-cylinder diaphragm pump
  5. Gearbox: Planetary reducer
  6. Dry weight: ≤180kg
  7. Dimensions: ≤900×650×670
  8. Maximum flow rate: ≥180L/min
  9. Maximum pressure: ≥5MPa
  10. Maximum lift: ≥45m
  11. Maximum range: ≥25m
  12. Maximum suction lift: ≥5m
  13. Fuel tank capacity: ≥4L
  14. Fuel consumption: 390g/kW.h
  15. Water intake method: Fully automatic water intake
  16. Water intake: DN40
  17. Water outlet diameter: DN40
  18. Configuration requirements: One DC spray gun, one bottom valve, one 7meter suction pipe, one fuel tank set, one barrel of oil, one charger, one carton.
Water source acquisition and pressurization Forest fire pump is used to extinguish high-rise building fires 0
