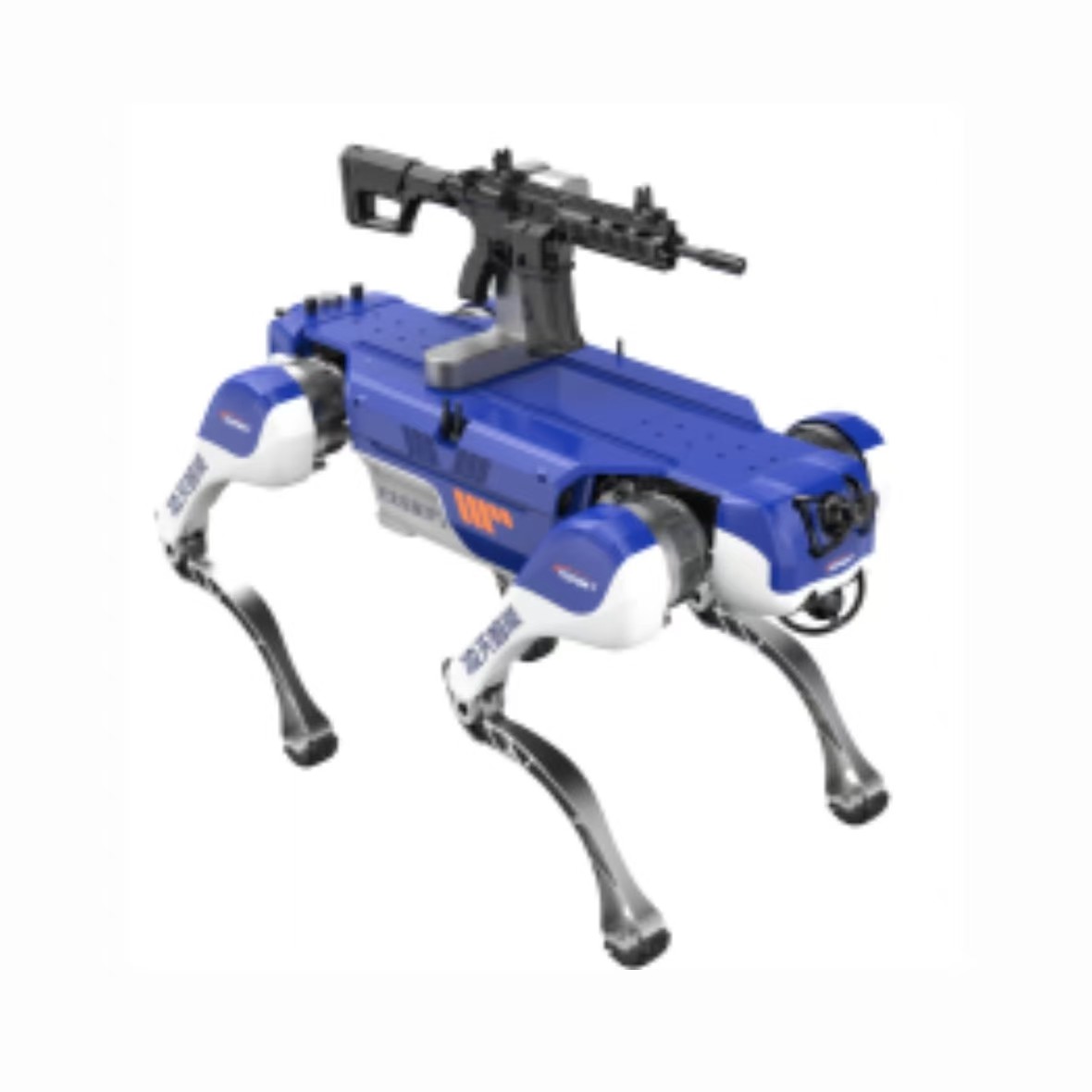

Quadruped armed strike robot

Specification:

Overall performance parameters
1. Name: Armed attack on quadruped robotic dogs;
2. Model: GAJQRDJ-LTZS ;
3. Chassis protection level: IP67;
4. Chassis dimensions (standing): ≤ 1000mm in length, 470mm in width, and 650mm in height; This parameter is consistent with the inspection report of the national inspection agency
5. Overall dimensions (standing): ≤ 1050mm in length, 470mm in width, and 950mm in height; This parameter is consistent with the inspection report of the national inspection agency;
6. Whole machine weight: ≤ 65Kg; This parameter is consistent with the inspection report of the national inspection agency;
7. Battery: 50AH, 48V;
8. Battery life: Comprehensive operating battery life of 2.5-4 hours
9. Stair walking ability: maximum step height of 25cm, capable of climbing industrial hollow metal stairs; This parameter is consistent with the inspection report of the national inspection agency
10. Slope walking ability: ≥ ± 30 °; This parameter is consistent with the inspection report of the national inspection agency
11. Running speed: ≥ 5m/s; This parameter is consistent with the inspection report of the national inspection agency
12. The maximum angle for climbing stairs is ≥ ± 35 ° [This parameter is consistent with the inspection report of the national inspection agency]
13. At a speed of 1.2m/s, the braking distance should not exceed 0.4m. This parameter is consistent with the inspection report of the national inspection agency
14. Wireless remote control terminal: The robot chassis and weapon combat are independently controlled, equipped with a handheld remote control terminal, with a working time of 4 hours and a high brightness display screen.

Weapon Station Parameters:
1. Dimensions: 300mm * 200mm * 200mm
2. Net weight of controller: 3.5KG
3. Material: Aviation aluminum (special hardening treatment), stainless steel material
4. Excitation method: continuous rotation, automatic firing and launching
5. Installation method: quick release four point positioning, quick release installation
6. Emission method: Electronic signal excitation
7. Linkage mode: Dual linkage of heading and pitch
8. Viewing distance: 300m
9. Distance measurement: 10-1000 meters
10. Rear sitting strength: 5kg
11. Power supply mode: onboard power supply
12. Working voltage: 24-60V
13. Control mode: Independent remote control PWM signal control for automatic start stop
14. Control distance: 5km
15. Supported device types: 95-1, 191, 192; AK style; Type 56
16. Shock absorption method: equipped with a two-stage rebound shock absorption system
17. Servo mode: 360 ° bidirectional high torque servo
18. Suitable for machine drones/ground robots
19. Protection function: overload and overcurrent automatic protection
20. The sighting system displays ranging information, crosshair information, position interpretation, with four light indication, high-definition AR zoom camera, night vision fill light, laser rangefinder, and laser pointer
Performance advantage, high security, with one click locking; Do not mute, prevent static electricity from accidentally triggering. Continuous launch, high stability, long guidance distance, repeated use, equipped with secondary shock absorption, with minimal impact on equipment.
